GC Gas Chromatography

GBC Scientific Equipment & Ewai

GC Nebula & GC-MS Aludra

GBC/Ewai GC Nebula is designed for all GC applications, from conventional to more specialized, such as multi-column analysis systems (RGA, NGA, PONA, PIANO, TOGA, etc.), up to multidimensional GC-GC technology, HPLC-GC, and HPLC-GC-GC. All these options can be implemented with the GC Nebula models at any time, ensuring the possibility of expanding the GC's potential. Aludra GC-MS system.

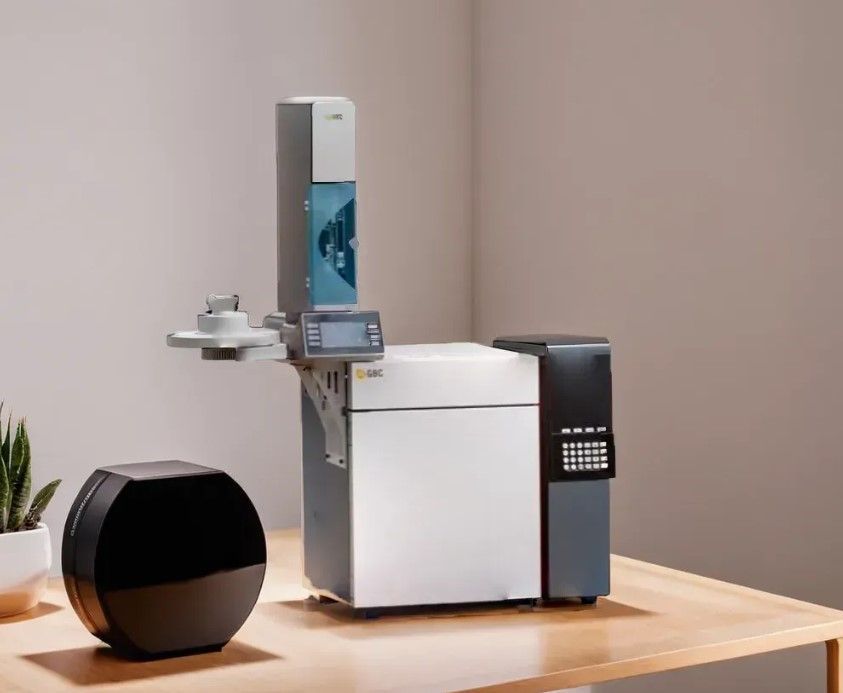

GBC Nebula GAS CHROMATOGRAPH WITH INTEGRATED GRAPHIC MONITOR

  • New unit with modular design and latest generation FPGA “Field-Programmable-Gate Array” electronics
  • Ability to install up to three detectors, three injection systems, and up to seven valves. System optimized for capillary and semi-capillary columns, compatible with packed columns.
  • Complete with column oven controllable in a temperature range from -90°C (optional) to 490°C in 0.1°C increments
  • Temperature control in 16 isolated blocks (two detectors, two injectors, three auxiliaries for accessories and oven with auto-off function
  • Pressure adjustable up to 150 psi in 0.01 psi increments useful for ultra-fast chromatography applications

Ready for multidimensional chromatography HPLC-GC-MS, GC-GC (heart-cutting), in-line purge and trap, headspace, mass detector coupling and automatic sample preparation.

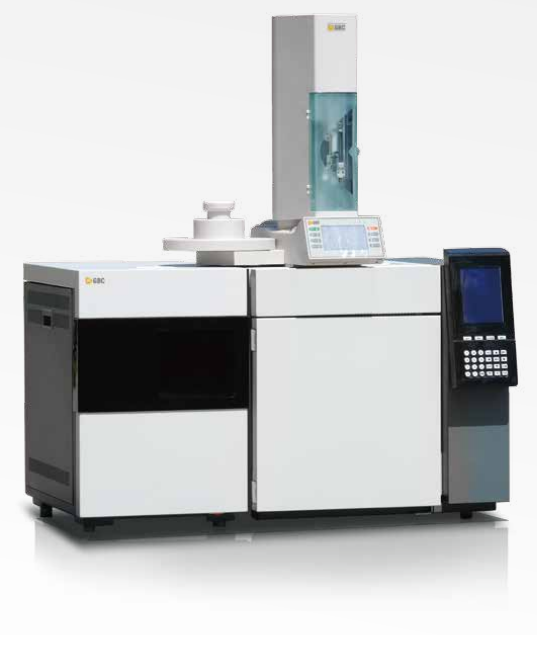

GC-MS GBC/EWAI Aludra

Single quadrupole mass detector

  • Revolutionary system that allows switching between GC/MS and LC/MS or DIP/DEP with simple and rapid operations (less than 15 minutes)
  • ElectroImpact Ionization source (EI)
  • Chemical Ionization (CI)
  • Quadripolar analyzer with pre-filters
  • Total mass scan or single ion monitoring (SIM)
  • Detection of positive and negative ions in (EI and /-) mode
  • Differential vacuum system consisting of two 200 l/s air-cooled turbo molecular pumps
  • Turbo molecular oil-dynamic pumps with automatic vacuum control, achieved in less than three minutes
  • Adjustable resolution to 2.0M
  • Programmable scanning up to 11,000 amu/sec.
  • Stability: ± 0.1 amu @ 24 hours
  • Sensitivity (EI): 1 pg (10-12) of Octafluoronaphthalene provides 10:1 RMS on a molecular ion extract at m/z 272.0, scan range 50-300 amu
  • Sensitivity (SIM): 1 pg (10-12) of Octafluoronaphthalene provides 80:1 RMS on a molecular ion at m/z 272.0

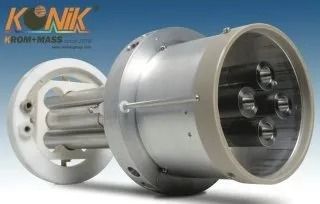

  • The quadrupole's wide aperture and large-diameter rods ensure high sensitivity and better resolution than conventional quadrupole mass spectrometers
  • Sealed photomultiplier detector for longer service life

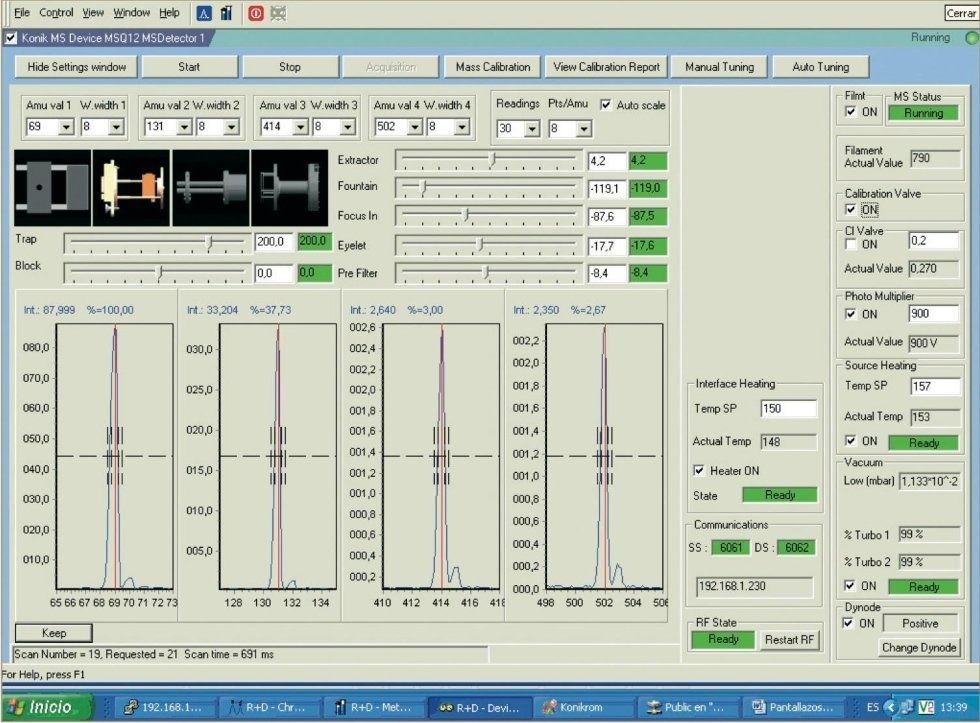

Chromatographic data integration software

Data management/acquisition software

  • Multi-tasking, multi-tool and multi-detector software
  • Management of up to 4 chromatographic systems/instruments, each of which can use up to 4 detectors
  • Data acquisition from the mass spectrometer
  • Optimized algorithm for detecting hundreds of peaks in a single run. Simple system for rereading previously acquired data.
  • Storage of data, methods, calibrations and work sequences
  • Data integration with 30 possible different parameters (peak width, threshold, slope, etc.) selectable at separate times and storable
  • Simultaneous display of data arriving from different detection systems, overlay functions, mathematical operations (additions, subtractions, etc.), customization of colors, text, window layout, etc.
  • Full support for GLP and 21 CFR Part 11 protocols; password protection, password expiration, electronic signature, audit trails, customizable user access, IQ and OQ
  • MS data compression algorithm
  • Direct connection to NIST05/08 libraries, spectral search function

KONIK K2/K2 Q12

ERRECI presents KONIK K2 Q12, the first and innovativeMULTIDIMENSIONAL chromatography(HPLC GC) fully automatic combined with Mass detector, three instruments in one solution, HPLC-Mass HRGC-Mass HPLC-HRGC-Mass.
The industry-leading Konik brand offers a system capable of interfacing HPLC/GC and/or HPLC/GC/MASSE techniques.

The K2 system allows direct injection into the system of complex matrices such as urine, plasma, blood, olive oil, mineral oils, petroleum fractions, etc.

For example, it is possible to inject olive oil samples without any pretreatment of the sample and use the HPLC system as a pre-analytical technique. Subsequently, the GC-ECD and/or GC-Mass system can be used for the analysis of pesticides or other substances of interest.

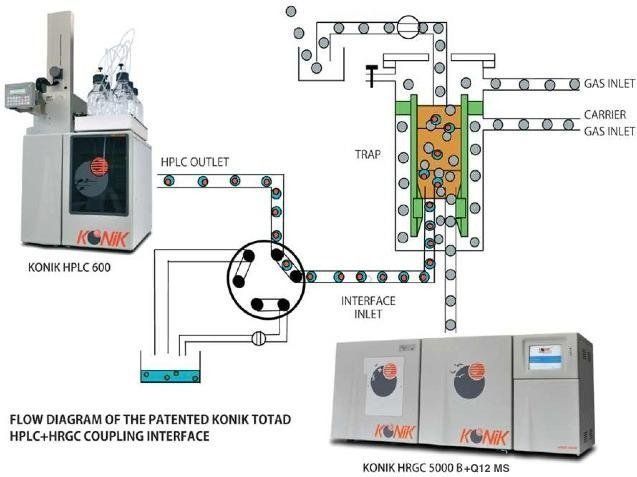

TOTAD® Thermostatted Interface allows direct and automatic analysis of the flow coming from the HPLC. The transfer to the GC is achieved using a PTV (Programmed Temperature Vaporizer) injector filled with an absorbent trap, eliminating or drastically reducing sample preparation time and cleaning operations between samples. Patented system.

  • Learn more

    Specifically, the Konik K2 and K2 Q12 Multidimensional Chromatography system is composed of the following modules:

  • HPLC chromatographic system, complete with detector of your choice (UV-VIS/RI/etc.), including Mass to perform LC-MS, usable as a single module or used as a pre-analytical system for multidimensional HPLC/HRGC-Mass chromatography.

  • HRGC high-resolution gas chromatography system, suitable for Fast GC, complete with a detector of your choice (FID/ECD/NPD/etc.), or a mass spectrometer for GC-MS; can be used as a standalone module or as an HPLC/HRGC-mass multidimensional chromatography system

  • Mass Detector, interfaceable with HPLC for LC-MS, with HRGC for HRGC-MS or as detector of the HPLC/HRGC/MASSA multidimensional chromatography system

  • TOTAD interface for the automatic transfer of fractions of interest between HPLC and HRGC.

    • The modules are standalone and independent, and can also be purchased separately at a later date.




    You can start from the following configurations:

  • HPLC, HPLC system complete with UV/RI/Fluorescence/Conductivity/etc. detector;

  • LC-MS, HPLC system complete with mass detector;

  • HRGC, High Resolution Gas Chromatography System suitable for “Fast GC” complete with FID/ECD/NPD/etc. detector;

  • GC-MS, complete high-resolution gas chromatograph system with mass detector;

  • Multidimensional HPLC/HRGC/MASS Chromatography System complete with TOTAD interface.

    • The benefits of this innovative system include automation and sample preparation with maximum productivity, speed and ease of use.
