ERRECI
ERRECI EZCHROM HPLC
ERRECI HPLC SYSTEM - EZCHROM Line
Micro, analytical and semi-preparative liquid chromatography
- HPLC PUMP FOR GRADIENT UP TO QUATERNARY HIGH OR LOW PRESSURE
- VARIABLE WAVELENGTH UV-VIS DETECTOR (DUAL WAVELENGTH, SCANNING, OR DAD)
- REFRACTIVE INDEX DETECTOR
- FLUORIMETRIC DETECTOR
- AMPEROMETRIC DETECTOR
Other detectors available upon request
- COLUMN OVEN (UP TO 6 COLUMNS) COMPLETE WITH VALVE FOR SELECTING THE APPROPRIATE COLUMN BASED ON THE METHOD
- INLINE DEGASSER UP TO 4 CHANNELS
- 120-POSITION AUTOSAMPLER (THERMOSTAT AND/OR DERIVATIZATION OPTION)
- EASY-TO-USE ACQUISITION/MANAGEMENT SOFTWARE
- TECHNICAL ASSISTANCE (EQUIPMENT) AND APPLICATION MANAGED DIRECTLY BY ERRECI AS THE SOLE INTERLOCUTOR WARRANTY EXTENSION
- COMPLETE DATA STATION WITH PC AND PRINTER (WINDOWS)
- PURCHASE, RENTAL OR SERVICE FORMULAS
ERRECI
YI9610 programmable HPLC pump with double reciprocating piston technology
- ONE PUMP THREE CONFIGURATIONS
- ISOCRATIC
- LOW PRESSURE QUATERNARY GRADIENT (LPG)
- HIGH PRESSURE BINARY GRADIENT
- MICRO; ANALYTIC; SEMI-PREPARATIVE
Programmable gradient HPLC pump
- HPLC pump for low pressure quaternary gradient system
- Double reciprocating piston pumping system with new generation stepper motor;
- COMPLETE WITH INTERCHANGEABLE PUMPING HEAD
- Flow: 0.001...10,000 ml/min. (Micro: 0.001-4,000 ml/min) (Semi-Prep 0.1-40,000 ml/min)
- Flow Reproducibility: Better than 0.1%
- Maximum Pressure: 400 bar (40 Mpa / 0-6000 psi) (Semi-Prep 20 Mpa @ 20 / 10 Mpa @ 10 ml/min)
- Flow Accuracy: ≤ 0.05% RSD at 1,000 ml/min
- Allows Gradients of up to four solvents in low pressure LPG (quaternary)
- Gradient settable from 0.0 to 100.0% in increments < 0.1%
- Gradient Accuracy < 0.30%
- Mixer Volume variable between 10-500 µl
Dual variable wavelength
- Optical system with holographic grating monochromator
- Wavelength range 190...900 nm
- Dual Wavelength readings
- Acquisition with frequency up to 125 Hz
- Automatic calibration and self-diagnosis at power-on via Holmium Filter (Internal)
- Dual source: Deuterium and Quartz Iodine lamp
DAD, DIODE ARRAY DETECTOR
- Ceramic construction to ensure maximum thermal stability and the best optical performance:
- Wavelength range 190...950 nm
- Number of diodes: 1024
Refractive Index Detector
- Measuring range: 1.00-1.75 RI
- Analytical flow cell volume 9 µl
- Analytical flow cell with 45° measuring angle
- Linearity 0-1000 µRIU
Fluorescence Detector
- Fully programmable fluorescence detector with double monochromator
- Measurement range 200-600 nm (optional up to 800 nm)
- 10 W Xenon flash lamp source with programmable frequency
Autocampionatore per HPLC
- Easy to use. Intuitive PC interface for simple method and sequence creation.
- 120-sample tray for 2 ml vials; 192 microplates.
- Sample thermostating from 4 – 60 °C (Optional).
Column Thermostat Oven
- Thermostat control from 4°C up to 90°C
- Temperature accuracy 0.1°C
- Temperature stability ± 0.03°C
- Space for the installation of six analytical columns and six pre-columns
ADVANCED POST-COLUMN HPLC APPLICATIONS
POST-COLUMN ION CHROMATOGRAPHY

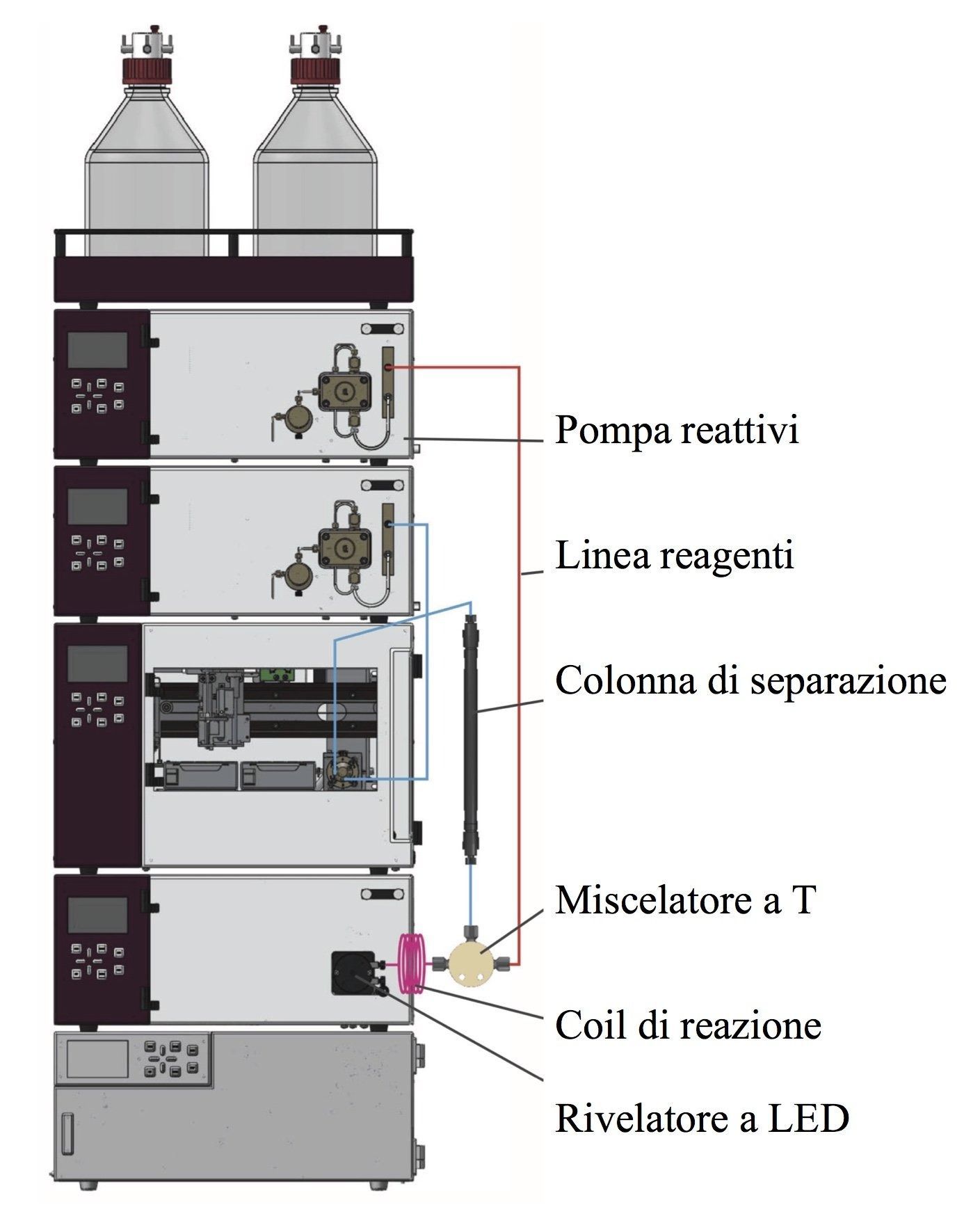

POST-COLUMN DERIVATIZATION
System Upgrade: Upgrade option with accessories for the post-column derivatization technique used in EPA 326 and DIN EN ISO 11206 methods suitable for the determination of bromates, transition metals, CrVI, amino acids, carbamates, aflatoxins or others.
Available modulesthe
- Isocratic HPLC pump for derivatization agent management
- UV/VIS detector for UV applications and post-column derivatization methods
- LED detector for single applications (CrVI, Bromate, etc.) with post-column derivatization
- IC Module for transition metals and post-column derivatization methods complete with reaction coil and T-valve

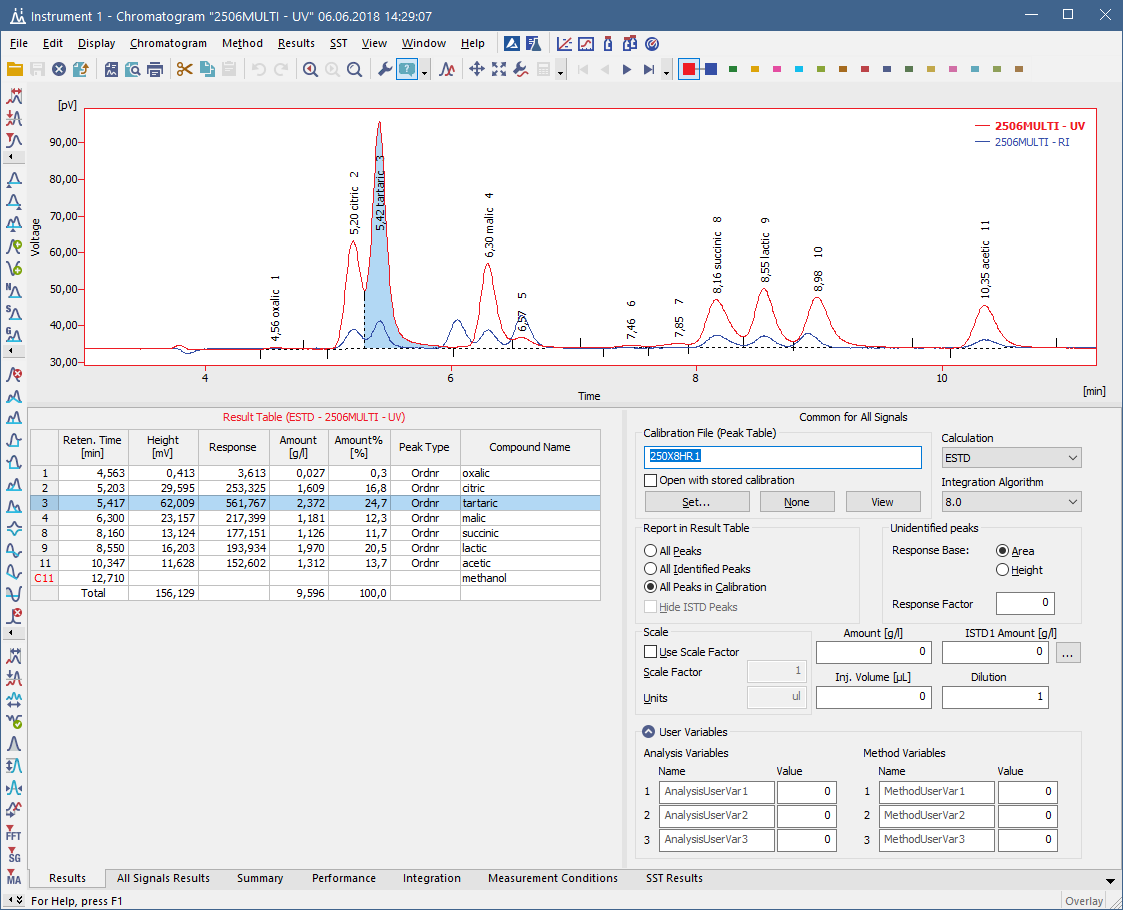

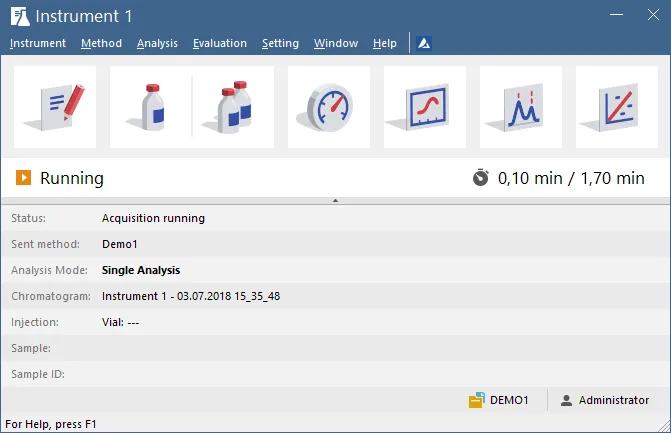

CLARITY
High-resolution chromatographic data acquisition and integration software
- Complete control of all system elements (management and programming of pumps, detectors, autosamplers, etc.)
- Simple and attractive graphical interface
- Compatible with Windows 7 operating systems
- LIMS (Laboratory Information Management System) support
- “Multi-tasking” system for data manipulation during acquisition
- Complete management of the functions of all system components (Flows, Pressures, Wavelength, Gradient, etc.)
- Programming methods and multi-method sequences
- Import/Export of data in standard format

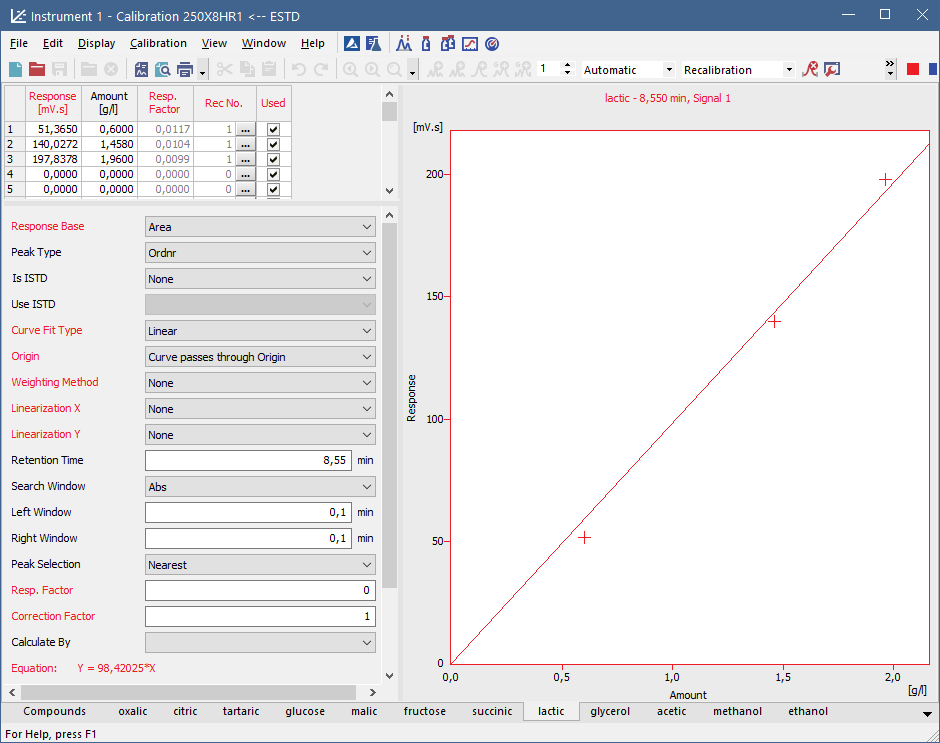

- Simple and complex multilevel calibration curves with linear, quadratic and cubic calculation algorithms
- Graphical and mathematical reprocessing of data saved on disk
- Diagnostics of modules inserted into the system
- - Compliant software CFR 21 Part 11
- GLP/GMP compliant software with storage of all user operations; Hardware, Software and Method Validation
- Requires Personal Computer
